EPRAIL - Heavy duty Electro Permanent Magnetic systems for Rail Machining

High clamping force for rigid & uniform clamping.
Accurate alignment of rail achieved.
Complete rail machining in only 2 set-up.
No vibration of Rails during machining operation..
Increased tool life.
High stock removal.
Superior accuracies and finishing.
Easy chips removal.
Energy saving.
Different Profiles of rails can be clamped on same Magnet using pole extensions.
Total face is accessible for machining.

A EPRAIL system is composed using a series of standard modular elements with 1000 mm fixed length each, in order to build up magnetic tables for different types of machines and length of rails to be machined.
Each EPRAIL module has independent magnetic sectors right angle placed to clamp respectively the foot and the web of the rail, with a total clamping force of 12 MT/m.
EPRAIL modules are standard equipped with a series of fixed pole extensions to match with the different rail profiles.

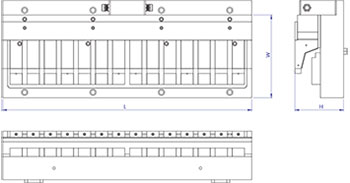

All Dimensions are in mm.

Art No.	W	L	H	Controller	Select for Quotation
13110.01	390	1080	268	93101.40

for Controller details, kindly visit the EPM Controller page.
Due to continuous upgradation in design there could be changes in specification.
Other sizes on request.
